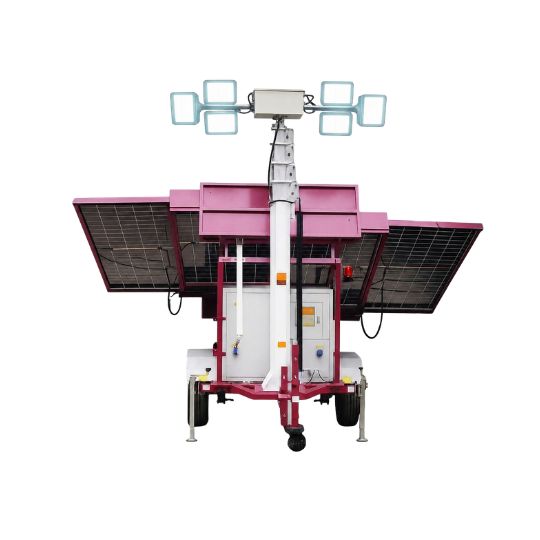

Limat IonX-4 is a high‑capacity hybrid solar mobile lighting system built for larger or more demanding job sites that need higher light output and robust autonomy. Like the IonX‑3, it is trailer‑mounted with a 5–9 m extendable mast, but steps up to 6 × 150 W LED floodlights and a larger solar and battery configuration.

Delivering up to 126,000 lumens, the IonX‑4 is suited for big construction sites, mining pits, ports, industrial yards and large outdoor events. The integrated LFP battery bank, 2 kWp solar array and AC charging ensure dependable operation with up to 20 hours runtime on a single charge.

Electric/hydraulic mast lift, motorised rotation and tilt of the light bar, plus a 360° camera, give operators complete control over site illumination and monitoring, while the timer and day/night automation reduce manual intervention.

Key Features

• High‑capacity hybrid solar lighting tower for demanding sites
• 6 × 150 W LED floodlights (900 W total)
• Up to 126,000 lumen output for wide‑area coverage
• 5–9 m electric/hydraulic mast for elevated lighting
• 355° electric rotation and 0–90° electric tilt of light bar
• Integrated 360° camera for full‑area surveillance
• 2 kWp solar array with adjustable manual tilt (25°–45°)
• 51.2 V LFP battery bank with up to 20 hours runtime
• AC charging option for flexible operation and backup
• 7‑day timer, day/night modes and external On/Off with hour meter
• Safety package with emergency stop and battery isolator

Applications

• Large construction and infrastructure projects
• Mining and heavy industrial operations
• Ports, terminals and logistics hubs
• Industrial yards and storage facilities
• Emergency response bases and temporary camps
• Outdoor events and remote area illumination

Technical Details

Model: Limat IonX-4
Configuration Type: Hybrid – Solar

Lighting

• LED Lamps: 6 × 150 W
• Total Lighting Power: 900 W
• Lumen Output: 126,000 lm

Mast & Light Bar

• Mast Height: 5,000–9,000 mm
• Mast Lift Type: Electric / Hydraulic
• Light Bar Rotation: 355° electric
• Light Bar Tilt: 0–90° electric

Solar & Charging

• Number of Solar Panels: 4
• Rated Panel Capacity: 4 × 500 W
• Total Solar Generation: 2 kWp
• Solar Tilt: 25°–45° manual, adjustable
• Charging Time (Solar/DC): Approx. 9 hours
• AC Charging: ~10 hours charging for ~20 hours lighting

Battery & Storage

• Battery Power: 20.4 kWh
• Battery Configuration: 51.2 V, 400 Ah LFP
• Number of Battery Sets: 1 set
• Battery Life Span: Approx. 3 years
• Battery Life Cycle: ~3,000 cycles

Control & Safety

• Control Modes: 7‑day timer / day–night modes
• On/Off Control: External On/Off with hour meter
• Emergency Stop: Included
• Battery Isolator: Included
• Fire Extinguisher: Applicable / provision included

Power Conversion

• Inverter Rating: 5.5 kW – 230 V – 50 Hz
• AC Charging Option: Included

Sliding Solar Panel Option

• Solar Panel Arrangement: 4 sliding panels
• Layout: Configured to support the mobile trailer arrangement

Customisation

• All technical parameters can be customised to meet project‑specific requirements, subject to Limat’s engineering approval.
