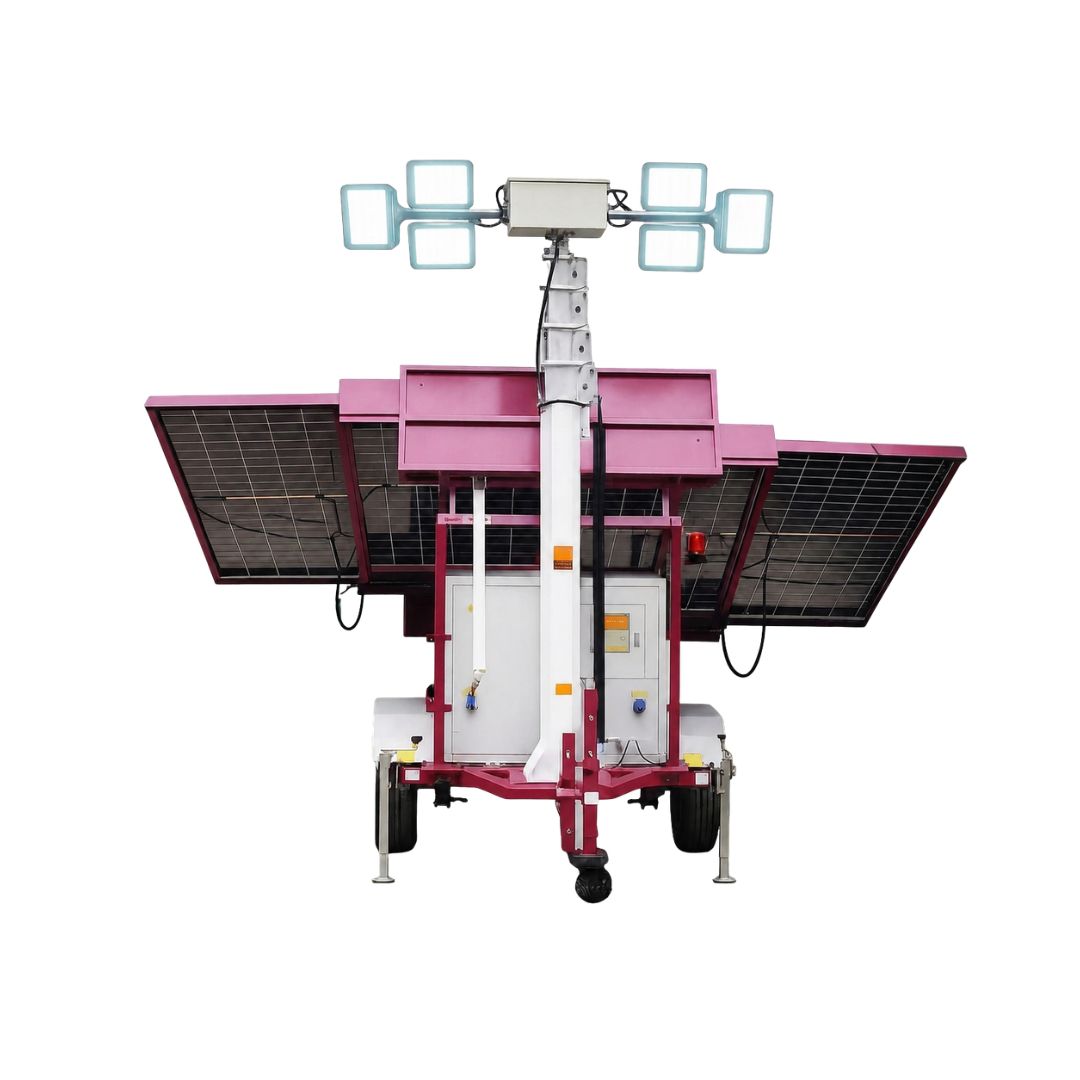

Limat IonX-3 is a compact hybrid solar mobile lighting tower designed for industrial sites that need reliable, off‑grid lighting without the headache of diesel generators. Mounted on a mobile trailer with an extendable mast up to 9 metres, the IonX-3 combines high‑efficiency LED floodlights, LFP battery storage, and solar + AC charging in a single rugged package.

With 6 × 100 W LED lights delivering up to 84,000 lumens and a runtime of up to 22.5 hours on a single charge, IonX‑3 is ideal for construction sites, road works, ports, industrial yards, mining, events and emergency response applications. Electric mast lifting, motorised light bar rotation/tilt, and an integrated 360° camera give operators full control and visibility over the work area.

The system’s hybrid solar design reduces fuel consumption, emissions and noise, while automated controls (7‑day timer and day/night modes) support unattended overnight operation.

Key Features

• Hybrid solar mobile lighting tower with trailer‑mounted design
• 6 × 100 W high‑output LED floodlights (600 W total)
• Up to 84,000 lumen output for large‑area illumination
• 5–9 m electric/hydraulic mast with quick deployment
• 355° electric light bar rotation and 0–90° electric tilt
• Integrated 360° camera for site monitoring
• 1.5 kWp solar array with manual tilt (25°–45° adjustable)
• 51.2 V LFP battery bank with up to 22.5 hours runtime
• AC charging option for fast turnaround between shifts
• 7‑day timer, day/night modes and external On/Off with hour meter
• Emergency stop, battery isolator and provision for fire extinguisher

Applications

• Construction and infrastructure projects
• Road works and highway maintenance
• Mining operations and quarry sites
• Ports, logistics yards and industrial plants
• Emergency and disaster response
• Events and remote area lighting

Technical Details

Model: Limat IonX-3
Configuration Type: Hybrid – Solar

Lighting

• LED Lamps: 6 × 100 W
• Total Lighting Power: 600 W
• Lumen Output: 84,000 lm

Mast & Light Bar

• Mast Height: 5,000–9,000 mm
• Mast Lift Type: Electric / Hydraulic
• Light Bar Rotation: 355° electric
• Light Bar Tilt: 0–90° electric

Solar & Charging

• Number of Solar Panels: 3
• Rated Panel Capacity: 3 × 500 W
• Total Solar Generation: 1.5 kWp
• Solar Tilt: 25°–45° manual, adjustable
• Charging Time (Solar/DC): Approx. 9 hours
• AC Charging: ~7.5 hours charging for ~22.5 hours lighting

Battery & Storage

• Battery Power: 15.3 kWh
• Battery Configuration: 51.2 V, 300 Ah LFP
• Number of Battery Sets: 1 set
• Battery Life Span: Approx. 3 years
• Battery Life Cycle: ~3,000 cycles

Control & Safety

• Control Modes: 7‑day timer / day–night modes
• On/Off Control: External On/Off with hour meter
• Emergency Stop: Included
• Battery Isolator: Included
• Fire Extinguisher: Applicable / provision included

Power Conversion

• Inverter Rating: 5.5 kW – 230 V – 50 Hz
• AC Charging Option: Included

Sliding Solar Panel Option

• Solar Panel Arrangement: 2 sliding panels, 1 fixed
• Layout: Configured to support mobile trailer deployment

Customisation

• Technical parameters (lighting, battery, solar sizing, controls) can be customised based on project requirements.
